ECO Spot C60+ with Blink/Fade/Dim controls

$548.00

Projection Lens (included)

Quantity

ECO Spot LED C60+
- Our most Powerful Compact Projector now with Dimming, Blinking, Fading Controls
Please Note - *E-Size Gobos ONLY*

Description

Features

Specifications

Photometrics

Set-Up Video

Resources

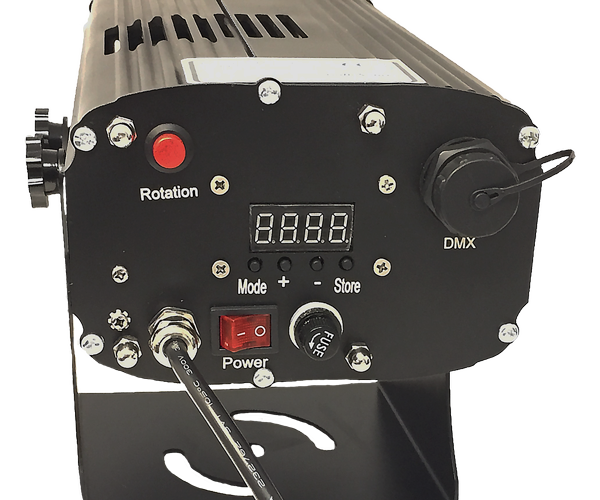

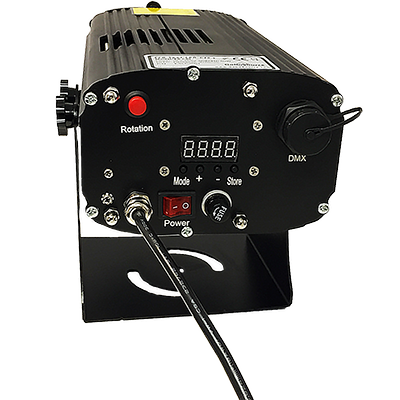

The C60+ is identical to our C60 model with the addition of adjustable dimming and a range of blinking and fading functions. Make your image pulsate at different frequencies or fade in and out, all through a simple control menu on the projector’s back plate—no complicated DMX controllers required! Once you find the perfect setup, store your preferred settings so you’re always ready to go, even in the case of a power outage.

Find The Right Projector - Click Here

LED lamp technology, Ten times more efficient than comparable halogen Projector

Takes E-Size (with included adapter) and D-Size metal and glass Gobos up to Full Color. NO FILM GOBOS.

Integrated switchable Gobo Rotator

New Functionality controls for Dimming, Blinking, and Fading

40,000 hours bulb life - never exchange a bulb over the life of the projector.

Interchangeable projection lenses make it easily adaptable to a wide range of applications.

Automatically adjusts to a wide line voltage range - 100V - 240/277V, 50/60Hz, 72W

Quiet cooling fan.

Extremely Compact, light weight.

Unique yoke/stand-foot allows for Standalone or Truss mounting.

Full aluminum housing.

Projector

Order Code: ES-C60+

Power Supply: 100V - 240/277V, 50/60Hz, 72W

Functionality: Includes dimming, blinking, and fading controls

Ambient Temp. Range: -22°F to 122°F (-30°C to 50°C)

Build Options: C60E - Exterior Weather Resistant Version, C60 Basic Interior Version w/ Gobo Rotator and Dimming

Optical

Lamp: 60W LED, 40,000h rated bulb life

Projection Lens Included: yes, choose from options below

Available Lenses: Narrow: f=140mm/10°, Semi-Narrow: f=100mm/15°, Medium: f=70mm/20°, Wide: f-50mm/25°, Ultra-Wide: f-28mm/45° (Max ID for this lens is 23mm)

Gobo Size: E-Size - Outer Diameter: 37.5mm, Image Diameter: 25mm, max. Thickness: 4mm

Effective Luminous Flux: 2,400lm

Color Temperature (Kelvin): 6,000k +/-500k

Dimmable: Yes, manual dimming with controls on back plate.

Lens Range

Bright - up to 50 ft

Dim - up to 90 ft

Dark - 180 ft

Dimensions

Base 7” x 3.75”

Total Length: 13” (incl. std. lens)

Total Height: 7.75”

Weight: 7 lbs

Package Contents

Power Cord

Test Gobo

Spare Gobo Retaining Ring

Gobo Adapter ring for E-Size Gobos

Integrated Gobo Mounts

Projection Chart

ECO Spot Photometrics

Video

User Manual

Blink Control Manual

Spec Sheet

Find the Right Projector - Click Here

Product Warranty

Order Code:	ES-C60+
Power Supply:	100V - 240/277V, 50/60Hz, 72W
Functionality:	Includes dimming, blinking, and fading controls
Ambient Temp. Range:	-22°F to 122°F (-30°C to 50°C)
Build Options:	C60E - Exterior Weather Resistant Version, C60 Basic Interior Version w/ Gobo Rotator and Dimming

Lamp:	60W LED, 40,000h rated bulb life
Projection Lens Included:	yes, choose from options below
Available Lenses:	Narrow: f=140mm/10°, Semi-Narrow: f=100mm/15°, Medium: f=70mm/20°, Wide: f-50mm/25°, Ultra-Wide: f-28mm/45° (Max ID for this lens is 23mm)
Gobo Size:	E-Size - Outer Diameter: 37.5mm, Image Diameter: 25mm, max. Thickness: 4mm
Effective Luminous Flux:	2,400lm
Color Temperature (Kelvin):	6,000k +/-500k
Dimmable:	Yes, manual dimming with controls on back plate.

Base	7” x 3.75”
Total Length:	13” (incl. std. lens)
Total Height:	7.75”
Weight:	7 lbs
