Virtual Line Projectors
Our ECO Lines Virtual Line LED Projectors project a 3 to 4 inch thick, permanent floor line that eliminates the need for maintenance required by floor tape and paint lines. Compared to laser projectors, the lines are much thicker. Our line projectors are easy to set up and require little maintenance.
Efficiency:
ECO Lines Virtual Line Projectors work differently from Gobo Projectors. Dedicated line projectors utilize a special lens system that channels all available light into the form of a line. This makes them very efficient in projecting lines for floor marking and walkways in environments such as factories, production floors and warehouses.
ECO Lines F150 RGY - 3-Color Focusable Virtual Line Projector
Our 3rd generation line projector: focusable for crisper, longer lines at increased brightness.
Passively cooled with no moving parts, suitable for exterior usage.
RGY models have 10 color-pattern presets that can be selected via integrated control module.
The control module takes dry-contact switch or 1-10V variable voltage input.
Applications:
Industrial, In/Outdoor, Rugged
Features:
Lens focus ring, color changing module
Power:
150W LED
LED Color
Red, Green & Yellow
Line Width:
3 to 6 in.
Line Length:
Adjustable, up to 2x projection distance
ECO Lines F150 - Focusable Virtual Line Projector
Our 3rd generation line projector: focusable for crisper, longer lines at increased brightness.
Passively cooled with no moving parts, suitable for exterior usage.
Applications:
Industrial, In/Outdoor, Rugged
Features:
Lens focus ring
Power:
150W LED
LED Color
Red, Green, Amber, Yellow, Blue or White
Line Width:
3 to 6 in.
Line Length:
Adjustable, up to 2x projection distance
ECO Lines 150 - Virtual Line Projector
GoboSource's flagship LED virtual line projector for bright, crisp floor markings.
Passively cooled with no moving parts, suitable for exterior usage.
Applications:
Industrial, In/Outdoor, Rugged
Features:
Passive cooling, long service intervals
Power:
150W LED
LED Color
Red, Green, Yellow, Orange or Blue
Line Width:
3 to 6 in.
Line Length:
Adjustable, up to 2x projection distance
ECO Lines F80 RGY - 3-Color Focusable Virtual Line Projector
Our 3rd generation line projector: focusable for crisper, longer lines at increased brightness.
Passively cooled with no moving parts, suitable for exterior usage.
RGY models have 10 color-pattern presets that can be selected via integrated control module.
The control module takes dry-contact switch or 1-10V variable voltage input.
Applications:
Industrial, In/Outdoor, Rugged
Features:
Lens focus ring, color changing module
Power:
80W LED
LED Color
Red, Green & Yellow
Line Width:
3 to 6 in.
Line Length:
Adjustable, up to 2x projection distance
ECO Lines F80 - Focusable Virtual Line Projector
Our 3rd generation line projector: focusable for crisper, longer lines at increased brightness.
Passively cooled with no moving parts, suitable for exterior usage.
Applications:
Industrial, In/Outdoor, Rugged
Features:
Lens focus ring
Power:
80W LED
LED Color
Red, Green, Amber, Yellow, Blue or White
Line Width:
3 to 6 in.
Line Length:
Adjustable, up to 2x projection distance
ECO Lines 80 - Virtual Line Projector
GoboSource's flagship LED virtual line projector for bright, crisp floor markings.
Passively cooled with no moving parts, suitable for exterior usage.
Applications:
Industrial, In/Outdoor, Rugged
Features:
Passive cooling, long service interval
Power:
80W LED
LED Color
Red, Green, Yellow, Orange or Blue
Line Width:
3 to 6 in.
Line Length:
Adjustable, up to 2x projection distance

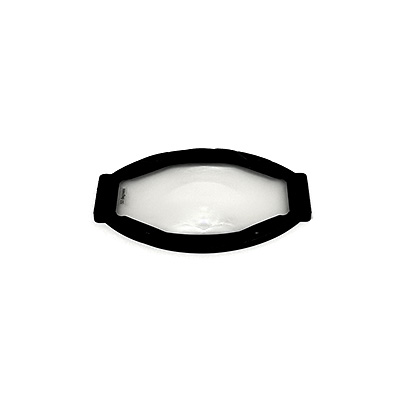

ECO Lines 80/150 Projection Lens 53º Narrow
ECO Lines Projection Lens 53º Narrow for ECO Lines 80 and ECO Lines 150

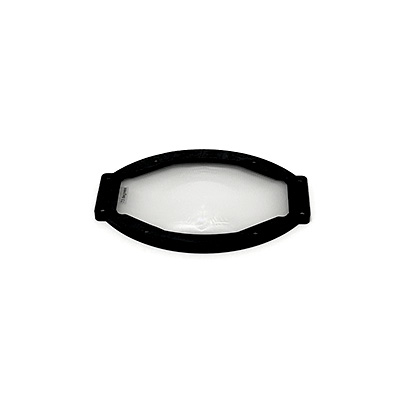

ECO Lines 80/150 Projection Lens 73º Medium
ECO Lines Projection Lens 73º Medium for ECO Lines 80 and ECO Lines 150

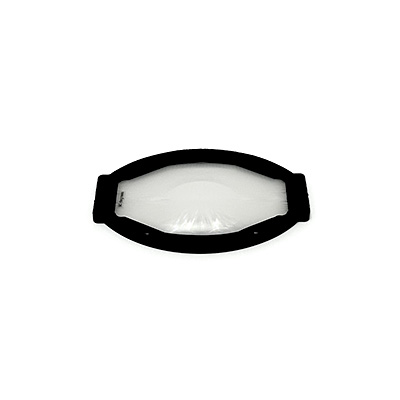

ECO Lines 80/150 Projection Lens 90º Wide
ECO Lines Projection Lens 90º Wide for ECO Lines 80 and ECO Lines 150
ECO Lines F80/F150 Projection Lens 53º Narrow
ECO Lines Projection Lens 53º Narrow for ECO Lines F80 and ECO Lines F150 (F-series models ONLY)
ECO Lines F80/F150 Projection Lens 73º Medium
ECO Lines Projection Lens 73º Medium for ECO Lines F80 and ECO Lines F150 (F-series models ONLY)
ECO Lines F80/F150 Projection Lens 90º Wide
ECO Lines Projection Lens 90º Wide for ECO Lines F80 and ECO Lines F150 (F-series models ONLY)
